8-20

Passive Serial Configuration

SV51010

2014.01.10

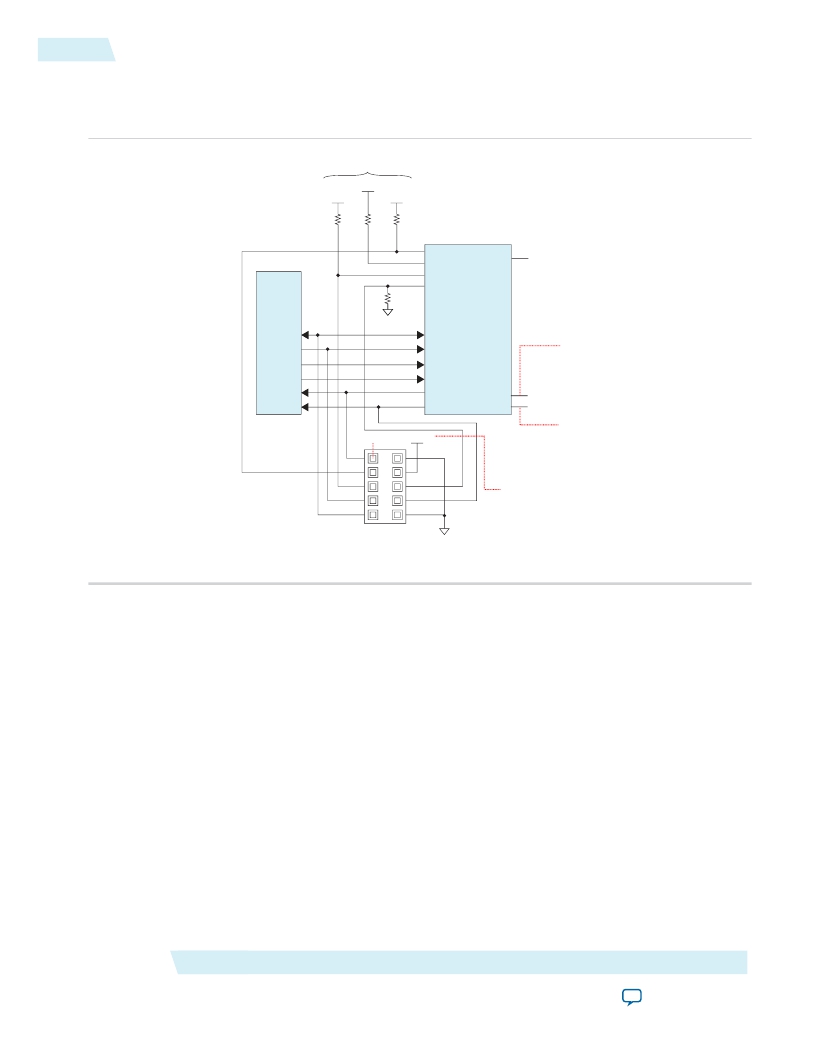

Figure 8-11: Connection Setup for Programming the EPCQ Using the AS Interface

Using the AS header, the programmer serially transmits the operation commands and configuration bits to

the EPCQ on DATA0 . This is equivalent to the programming operation for the EPCS.

Connect the pull-up resistors to

V CCPGM at a 3.0-V power supply.

V CCPGM

V CCPGM

V CCPGM

10 kΩ 10 kΩ 10 kΩ

FPGA Device

EPCQ Device

CONF_DONE

nSTATUS

nCEO

N.C.

nCONFIG

nCE

10 kΩ

DATA0

AS_DATA0/ASDO

DATA1

DATA2

DATA3

DCLK

nCS

Pin 1

AS_DATA1

AS_DATA2

AS_DATA3

DCLK

nCSO

V CCPGM

MSEL[4..0]

CLKUSR

For more information, refer to

the MSEL pin settings.

Use the CLKUSR pin to supply

the external clock source to

drive DCLK during

configuration.

Power up the USB-Blaster, ByteBlaster II,

EthernetBlaster, or EthernetBlaster II cable’s

V CC(TRGT) to V CCPGM .

USB-Blaster or ByteBlaster II

(AS Mode)

GND

10-Pin Male Header

When programming the EPCS and EPCQ devices, the download cable disables access to the AS interface

by driving the nCE pin high. The nCONFIG line is also pulled low to hold the Stratix V device in the reset stage.

After programming completes, the download cable releases nCE and nCONFIG , allowing the pull-down and

pull-up resistors to drive the pin to GND and V CCPGM , respectively.

During the EPCQ programming using the download cable, DATA0 transfers the programming data, operation

command, and address information from the download cable into the EPCQ. During the EPCQ verification

using the download cable, DATA1 transfers the programming data back to the download cable.

Passive Serial Configuration

The PS configuration scheme uses an external host. You can use a microprocessor, MAX II device, MAX V

device, or a host PC as the external host.

You can use an external host to control the transfer of configuration data from an external storage such as

flash memory to the FPGA. The design that controls the configuration process resides in the external host.

You can store the configuration data in Programmer Object File ( .pof ), .rbf , .hex , or .ttf . If you are using

configuration data in .rbf , .hex , or .ttf , send the LSB of each data byte first. For example, if the .rbf contains

Altera Corporation

Configuration, Design Security, and Remote System Upgrades in Stratix V Devices

Send Feedback
